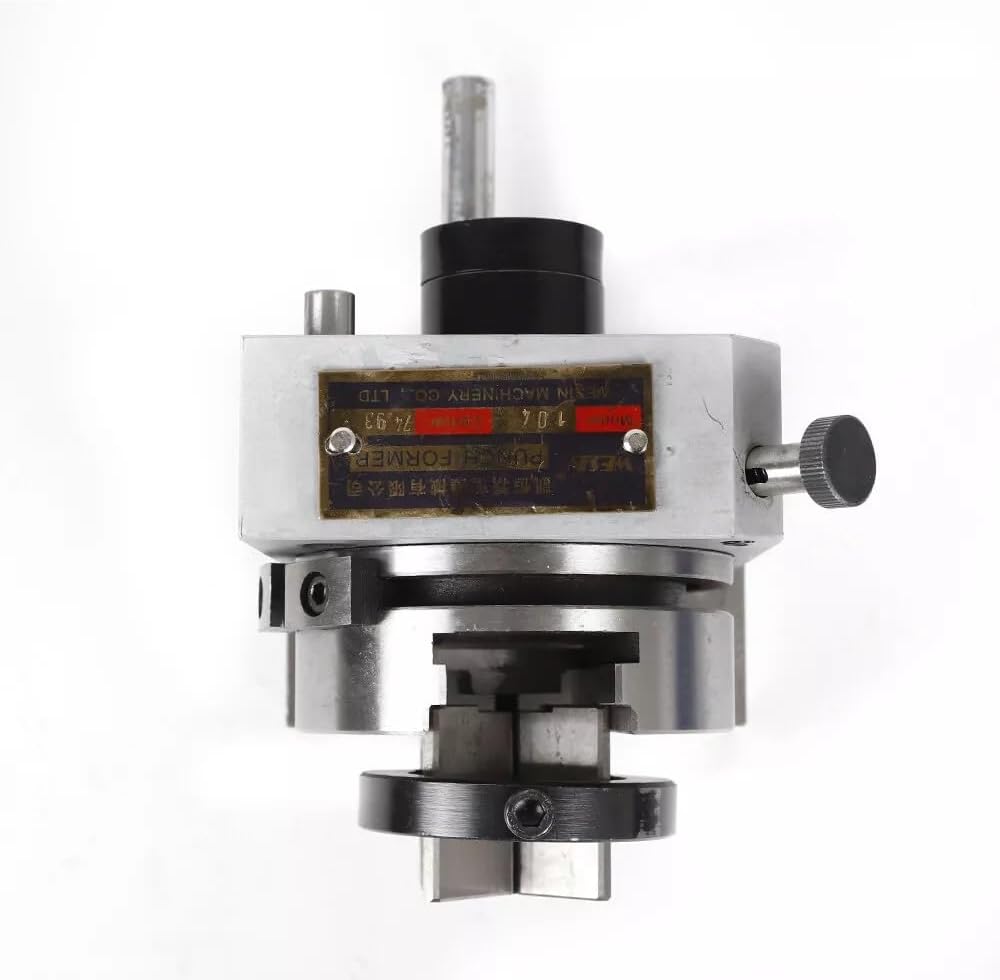

Professional Single Way Punch Former, with 360-Degree Scale, Vertical and Horizontal Grinding Machine Dresser Pin Grinder, for Milling, Drilling, Fixture Boring, SKS3

DescriptionThis punch former is made of high-quality Sks3 and is very strong and durable. It will help you to operate precisely and be your right-hand assistant for machining slots for milling cutters, cutting teeth for gears, curved milling slots, or drilling a bolt-hole circle around the circumference of a part.DetailsCenter Hole: The longer punch and its body can easily pass through it and can easily clamp.Smooth Surface: The surface of the finely polished metal punch former is smooth, so it will not easily damage other materials and is easier to clean.ApplicationIt is designed for milling, drilling, fixture boring and many common workshop applications.Specification Main Material: Sks3Color: SilverPackage Size: 33*23*20cm/13*9.05*7.9inPunch Former Size: 19.7*10.8*13.3cm/7.76*4.25*5.24inTrim Arm Size: 15.6*6.5cm/6.14*2.56inNet Weight: About 9kg/19.84lbsHeight Of Rotation Center:80mm/3.15in24sub Division: Sub-Degree 15°Accuracy: 0.01-0.008mmClamping Diameter In V-Solt: 3-30 mm/0.12-1.2inClamping Up & Down In-Solt: 25mm/0.98inMax. Wheel Diameter: 200mm/7.9inConvexr Triming Range: 48mm/1.9inConcaner Triming Range: 100mm/3.9inPackage Included1*Punch Former1*Trimming Arm1*Packing Box1*English and Chinese ManualNotesPlease allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

• Vertical and Horizontal Design: It has both vertical and horizontal functions. When the vertical position of the table is used with the tail section, it is possible to perform circumferential cutting, indexing drilling, milling and more complex work.
• High Precision: The punch former is marked with a 360-degree scale on it, so you can accomplish precise rotation and reset.
• Durable Casting Material: High hardness Sks3 has good casting characteristics, such as milling vise, vibration reduction performance and high heat resistance, so it is very durable.
• Easy to Carry: The compact press can be easily put into the included tool box. Therefore, if you want to use it on different milling cutters, you can easily move it to the machine you want.
• Guaranteed Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
